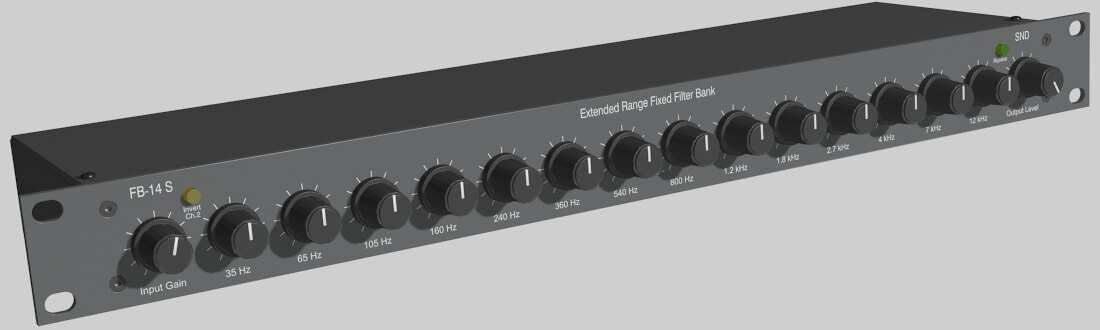

FB-14 S Extended Range Fixed Filter Bank
Stereo Version
| deutsche Version | large view |
| - | Contains two identical and matched channel strips of the FB-14 | ||||
| - | One channel can inverted by means of a frontpanel push button, meaning that turning a control clockwise will attenuate (rather that amplify) the corresponding frequency band. This allows creating spectral pannings. | ||||
| - |
The two channels can be chained one after the other by means of a frontpanel push button. When chained the FB-14 S becomes a mono filterbank with a control range of +/- 40 dB (!) per frequency band. When this mode is combined with the channel inversion the actions of the filters cancel out each other - due to the possibility of overdriving individual filters the device acts as a frequency-selective distortion unit. |
||||
| - | In addition to the 1/4"-jacks there RCA inputs and outputs for easy connection to DJ-equipment. | ||||
| - | 19”, 1 HE, depth (behind frontpanel) 128 mm + plugs, external pwer supply. | ||||
| - |
Price: € 1500 plus VAT & freight, 5 year warranty. |
||||
